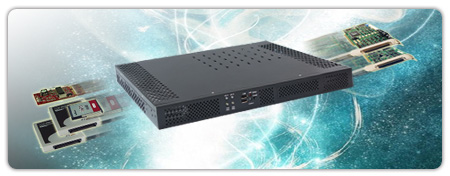

ROC235A
19” 1U Rack-mount Intel® QM77 Fanless Rugged System with Intel® Core™ i7/i5/i3 Processors, 9V to 24V DC-in, Extended temperature -40 to 70°C
Supports Core i7-3610QE (4 Cores, 45W) Fanless Operation
2 x SO-DIMM up to 16GB
2 x 2.5” SATA HDD/SSD
2 x LAN ports, 6 x USB ports
Multi-displays: VGA, DVI-D, HDMI
9V ~ 24V DC-in extended
Extended Temperature Support -40 to +70 °C
When it comes to public transportation, infotainment system is always what matters the most towards passengers. It gives passengers route, schedule and transfer information. Also, it provides entertainment, such as displaying movie trailers, ads or news. Among this, multi-media content server plays an important role to receive in-time information while traveling that allows the vehicle to connect to outside world. Content servers are used to store and control data, further display via WLAN. Therefore, ROC235A fan-less rugged 1U rack mount is the best option to operate under harsh environment.
Advanced thermal solution for better heat-dissipation
PERFECTRON ensures that the computer systems we develop remain stable even in high temperature environments. Our experts create system designs that use efficient thermal solutions – 6 copper heat pipes collaborates with aluminum heat sink will give full play to superb thermal performance. The heat pipe is a capillary-driven of the two-phase system. Two-phase heat transfer involves the liquid-vapor phase change of a working fluid. By forming water circulation in the vacuum heat pipe can have an extremely effective high thermal conductivity. This rugged mechanical structure is also providing better vibration resistance ability to remain the ROC235A has perfect computing performance.

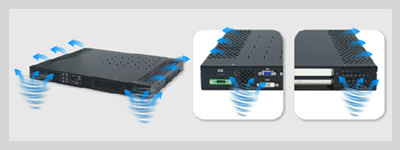

Ultra slim size with honeycomb heat dissipating vents design
The ROC235A features a black SECC finish and measures 44mm (1.73”) deep. Instead of a fan the enclosure features large, open honeycomb vents on the top, sides, front and back to allow for natural convection cooling. One or more honeycomb heat dissipating vents can be installed around a circuit board or power supply, this heat dissipating design can dissipate heat quickly by the honeycomb cells without occupying much space. The invention can increase the heat dissipating area for a faster heat dissipating effect and change the stylish appearance to achieve the aesthetic effect.

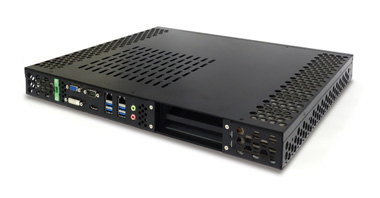

Rich I/O and expansion slot
ROC235A contains rich indicators including power, HDD and LAN LED in the front. For integration with all sort of system, at the rear side, you can find versatile I/O such as three display interfaces HDMI, DVI-D and VGA, audio Mic-in, Line-out, one COM port, two Ethernet LAN ports and six USB ports. Plus onboard 1 x PCI or 1 x PCIe and 1 x mPCIe expansion slot allows user to adapt more function like Wifi, GPRS etc. connection.
Wide Range DC-in
Sudden temperature drops or changes do not decrease the performance. Users can expect longer product lift and dependability, enhanced even more so by the support of 9V to 24V DC power range. With wide range DC-in; customers’ application is capable of surviving tough power cranks as well as transient over-voltage situations.
